Details

• Platform

  SuperX
• Model Name

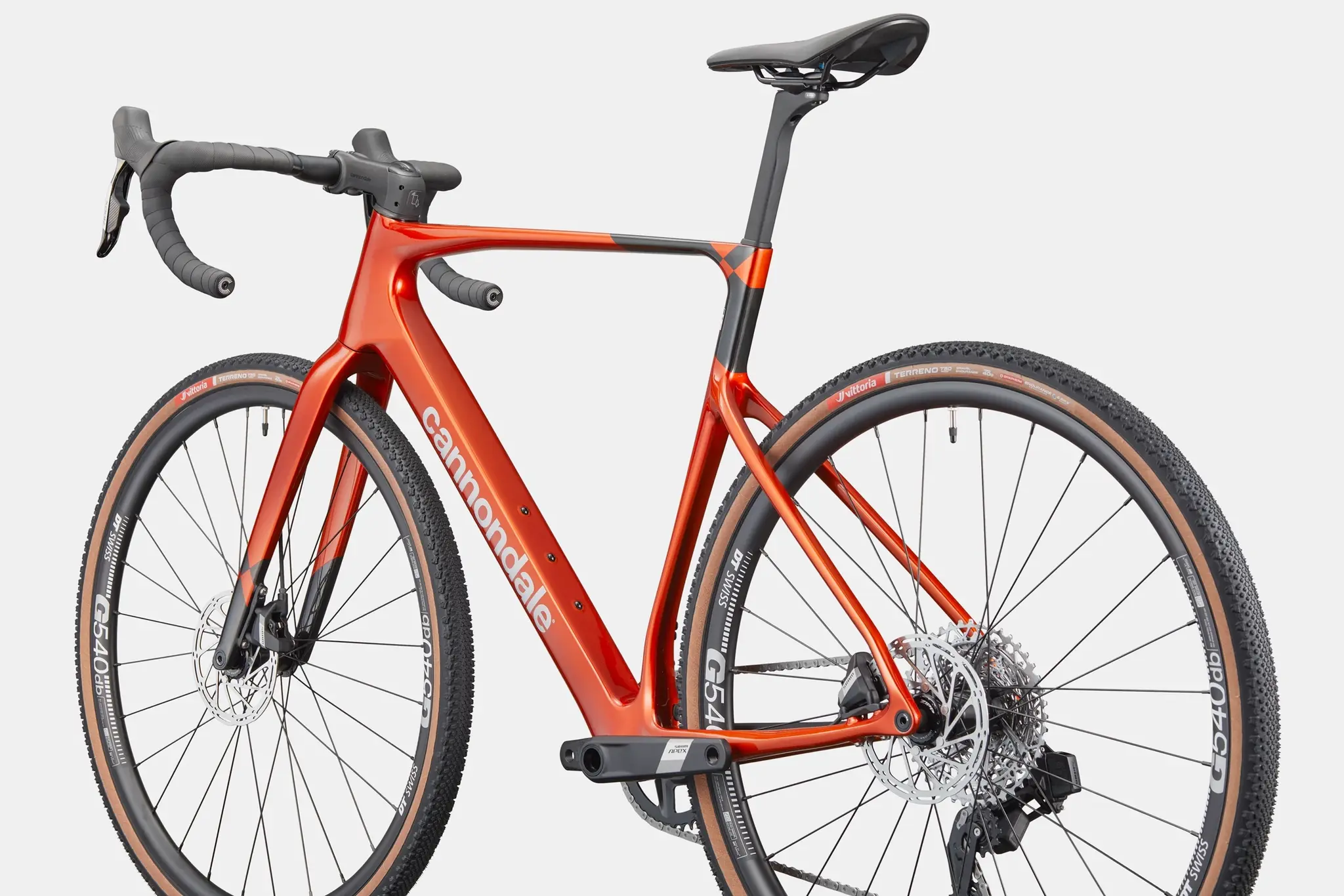

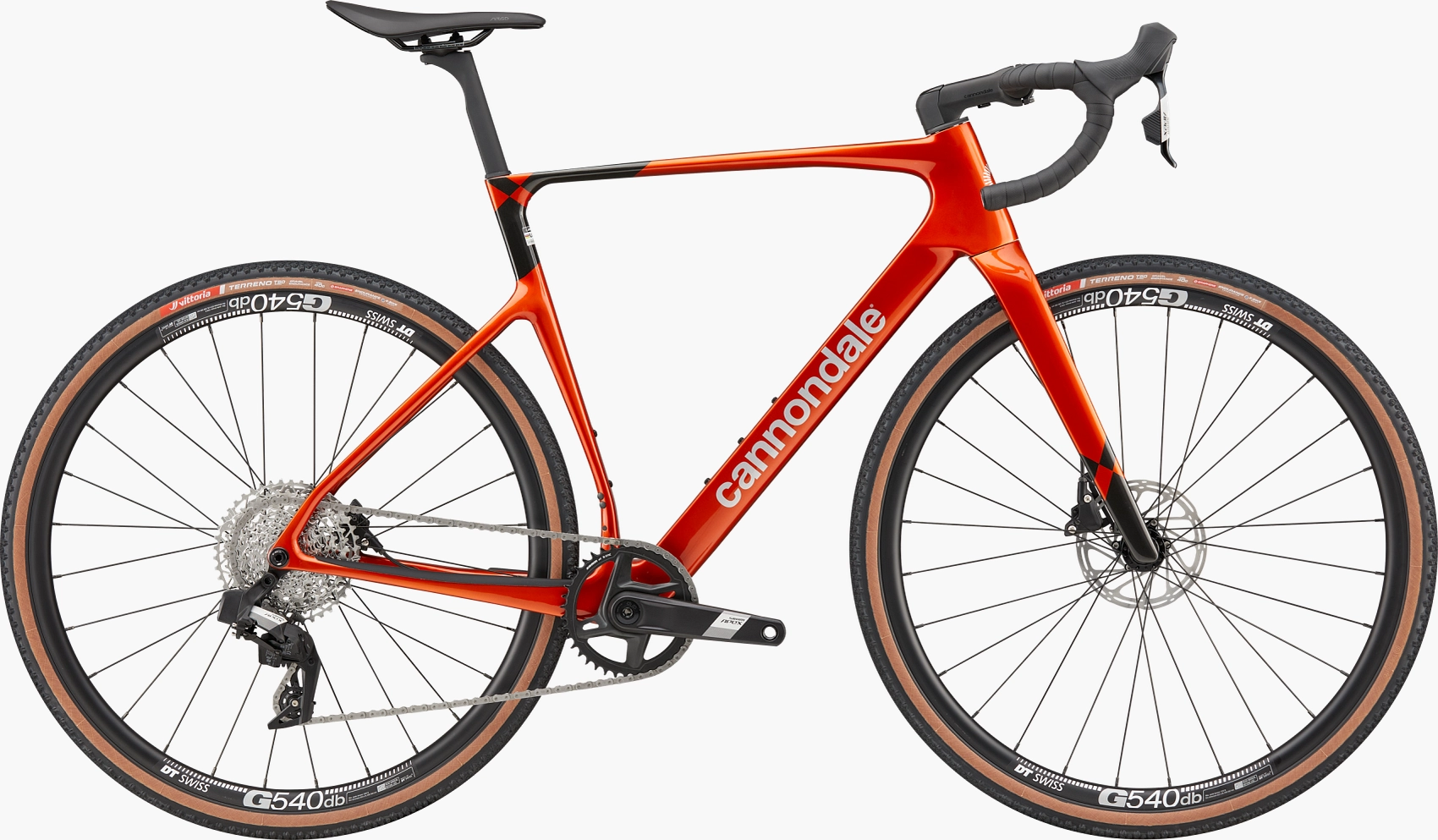

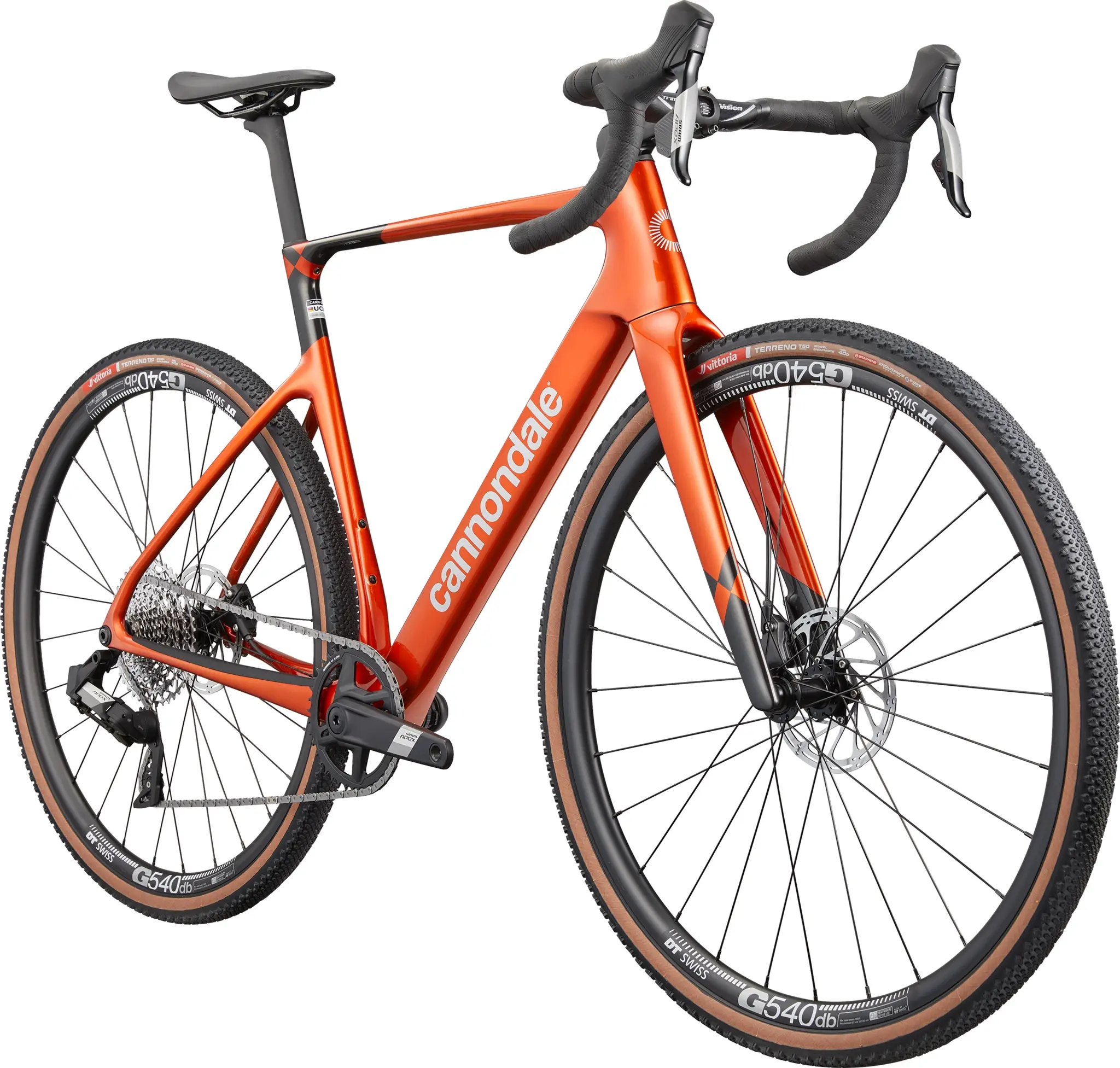

  SuperX 4 AXS
• Model Code

  C1706GU

Frameset

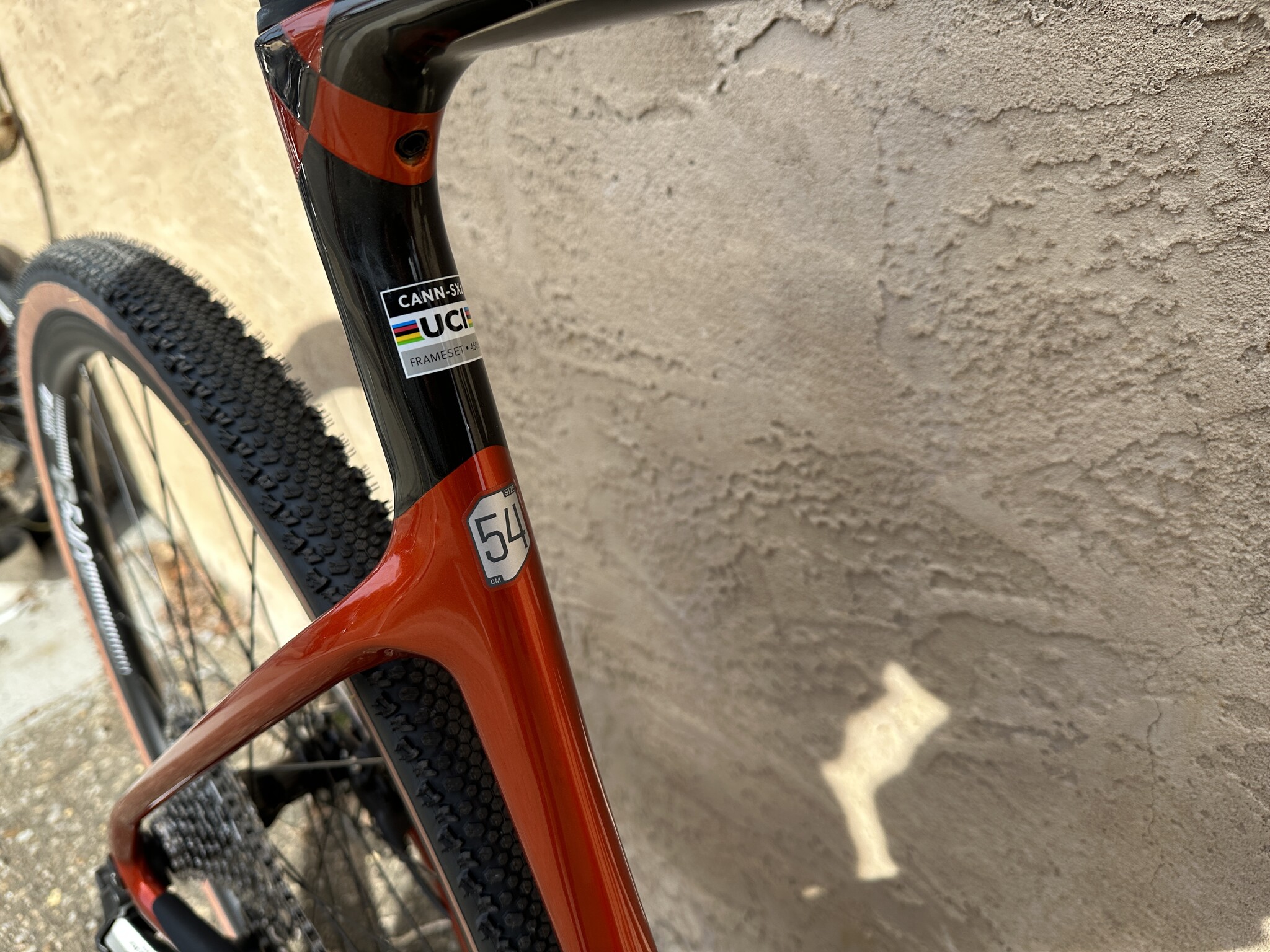

• Frame

  SuperX Carbon, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seatpost binder
• Fork

  SuperX Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset
• Headset

  Integrated, 1-1/8" - 1.5"

Drivetrain

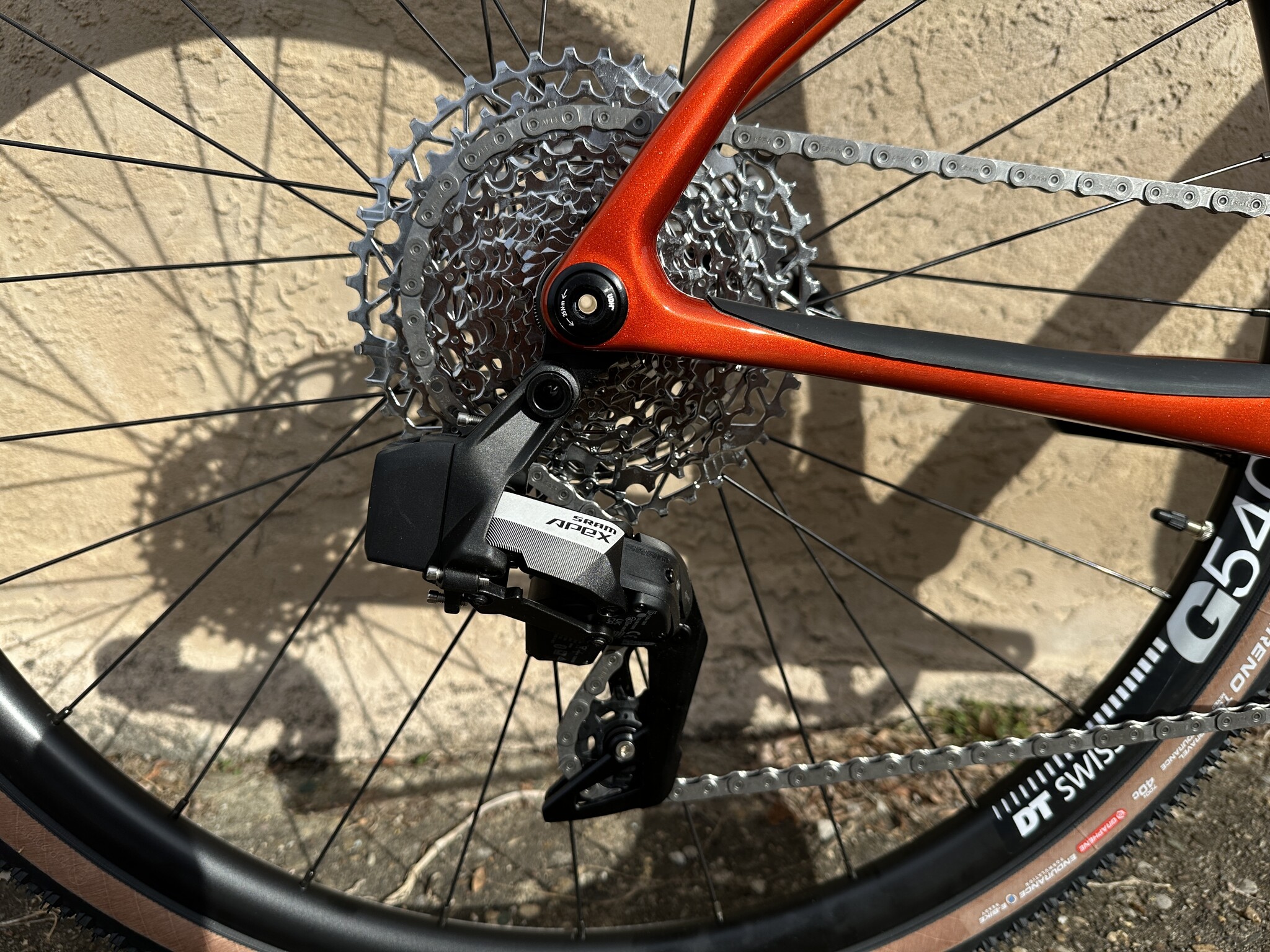

• Rear Derailleur

  SRAM Apex AXS XPLR, 12-speed

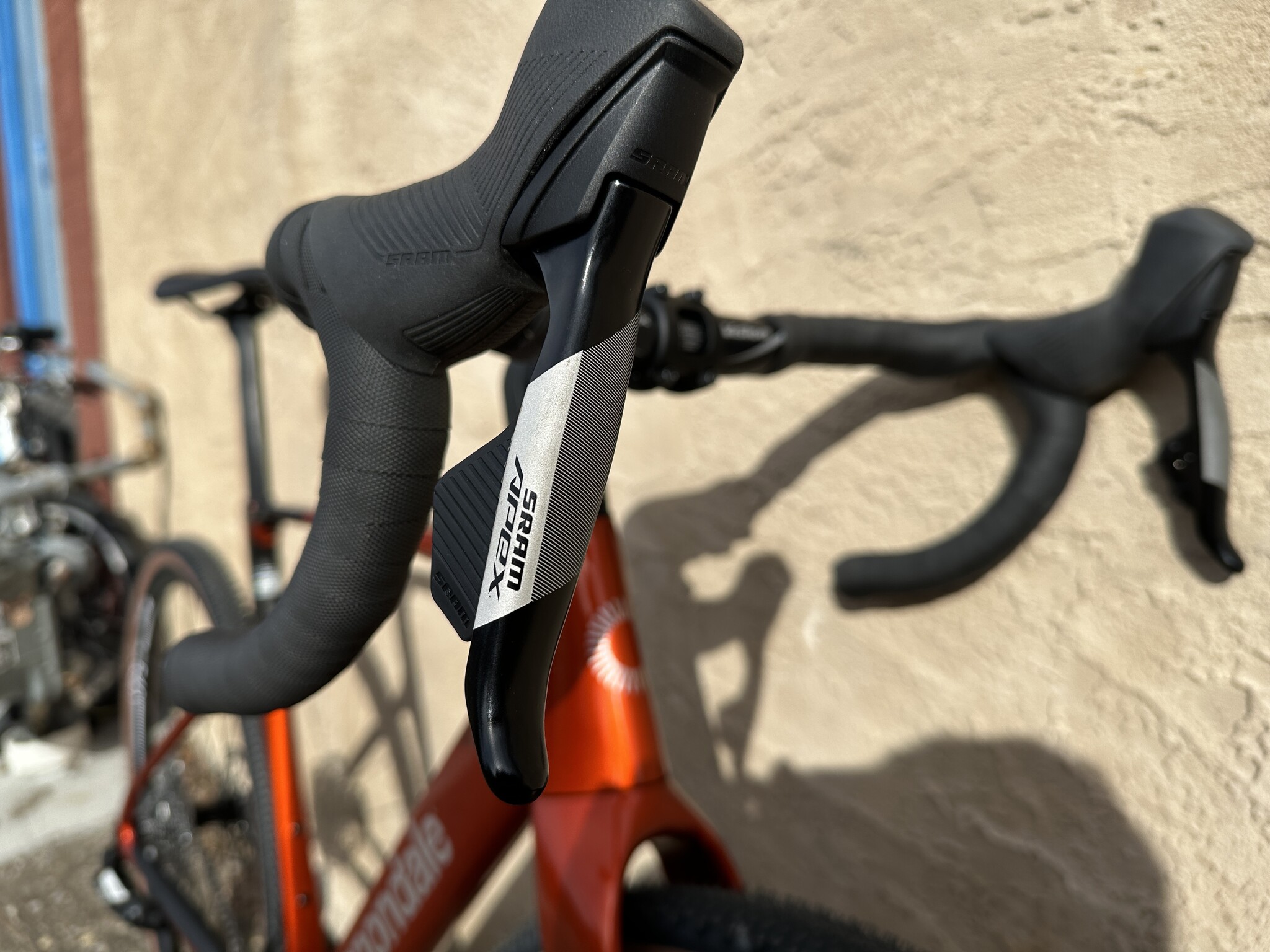

• Shifters

  SRAM Apex AXS, 12-speed
• Chain

  SRAM Apex, 12-speed

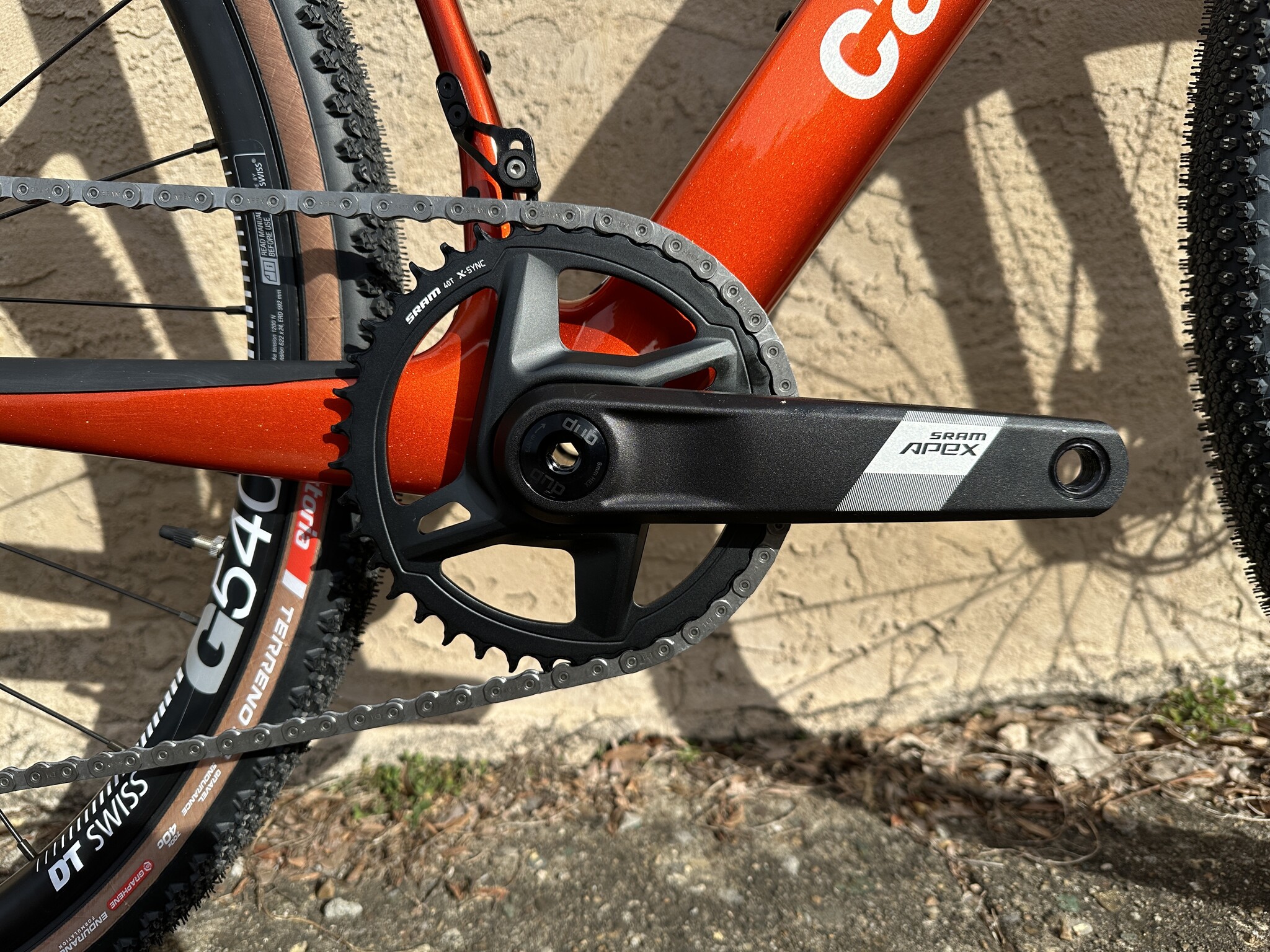

• Crank

  SRAM Apex 1 Wide, 40T: 165mm (46cm), 170mm (51cm), 172.5 (54-56cm), 175mm (58-61cm)
• Rear Cogs

  SRAM Apex XPLR PG-1231, 11-44, 12-speed
• Bottom Bracket

  SRAM DUB BSA Road 68 Wide

Brakes

• Brakes

  SRAM Apex hydraulic disc, Centerline 160/160mm centerlock rotors
• Brake Levers

  SRAM Apex AXS hydraulic disc

Wheels

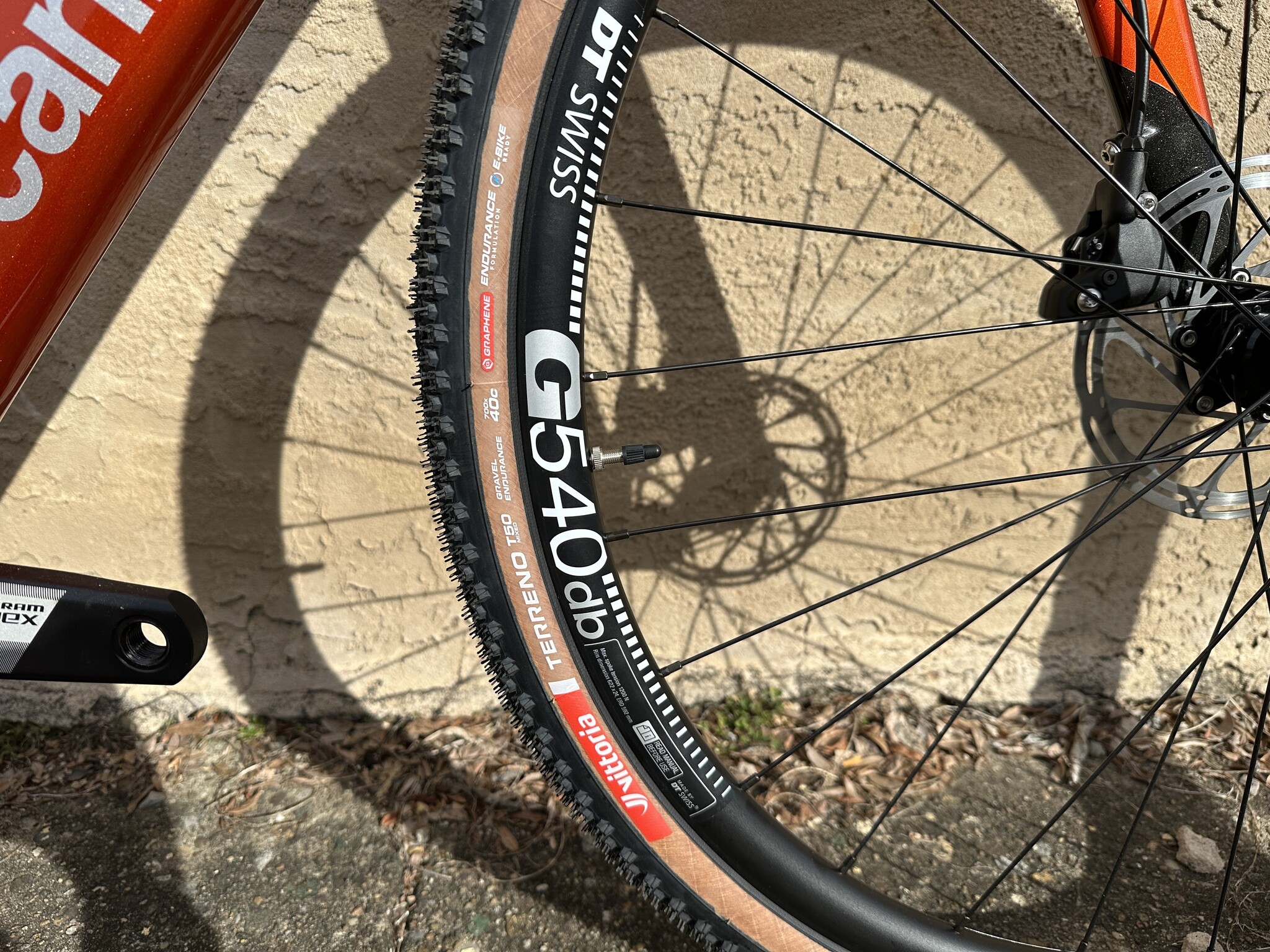

• Rims

  DT Swiss G540, 24mm inner width, 28h, tubeless ready
• Spokes

  DT Swiss Champion
• Tire Size

  40
• Wheel Size

  700c
• Hubs

  (F) DT Swiss 370, 12x100mm centerlock / (R) DT Swiss 370 LN Ratchet System, 12x142mm centerlock
• Tires

  Vittoria Terreno T50, 700x40c, tubeless ready

Components

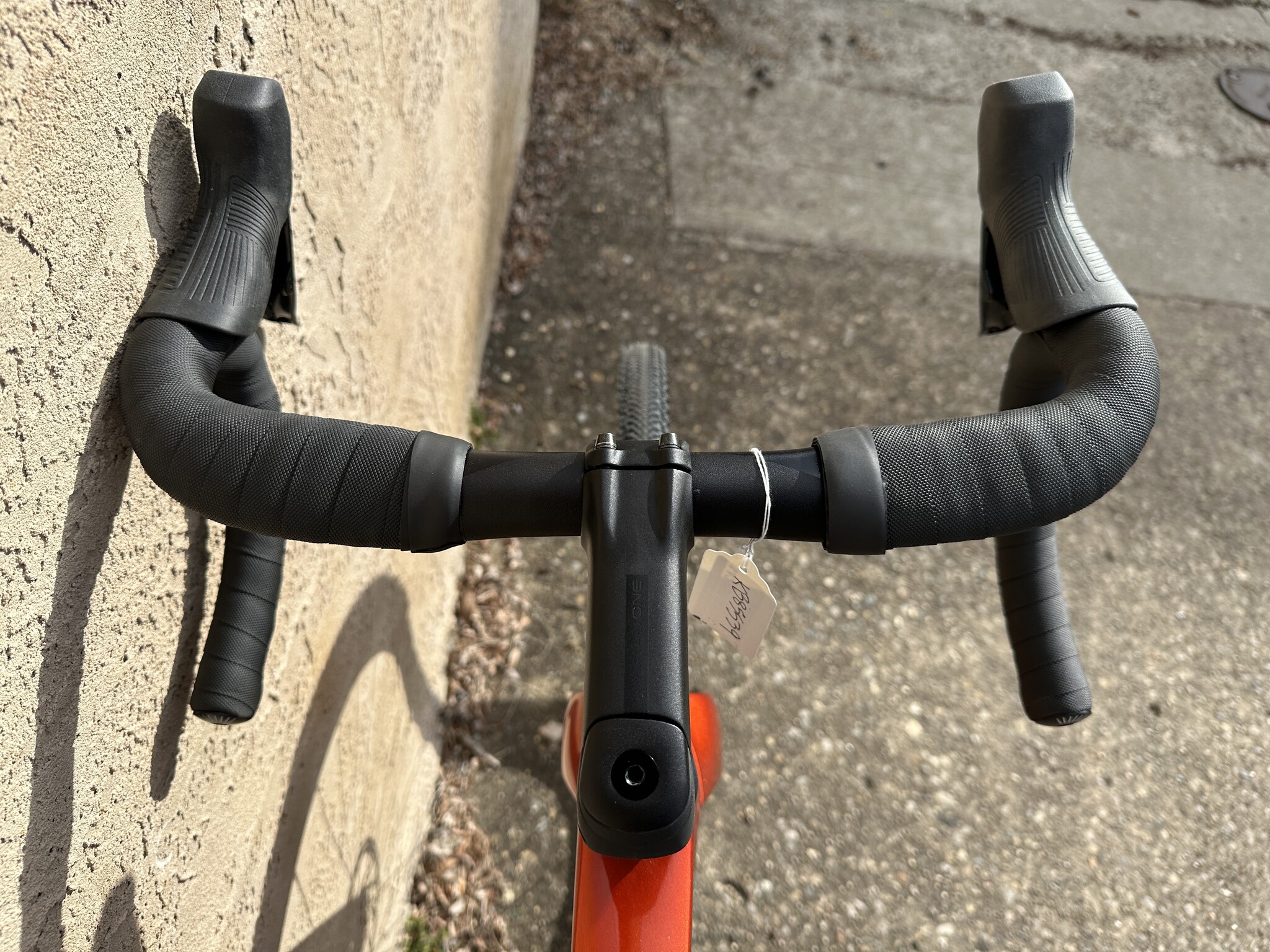

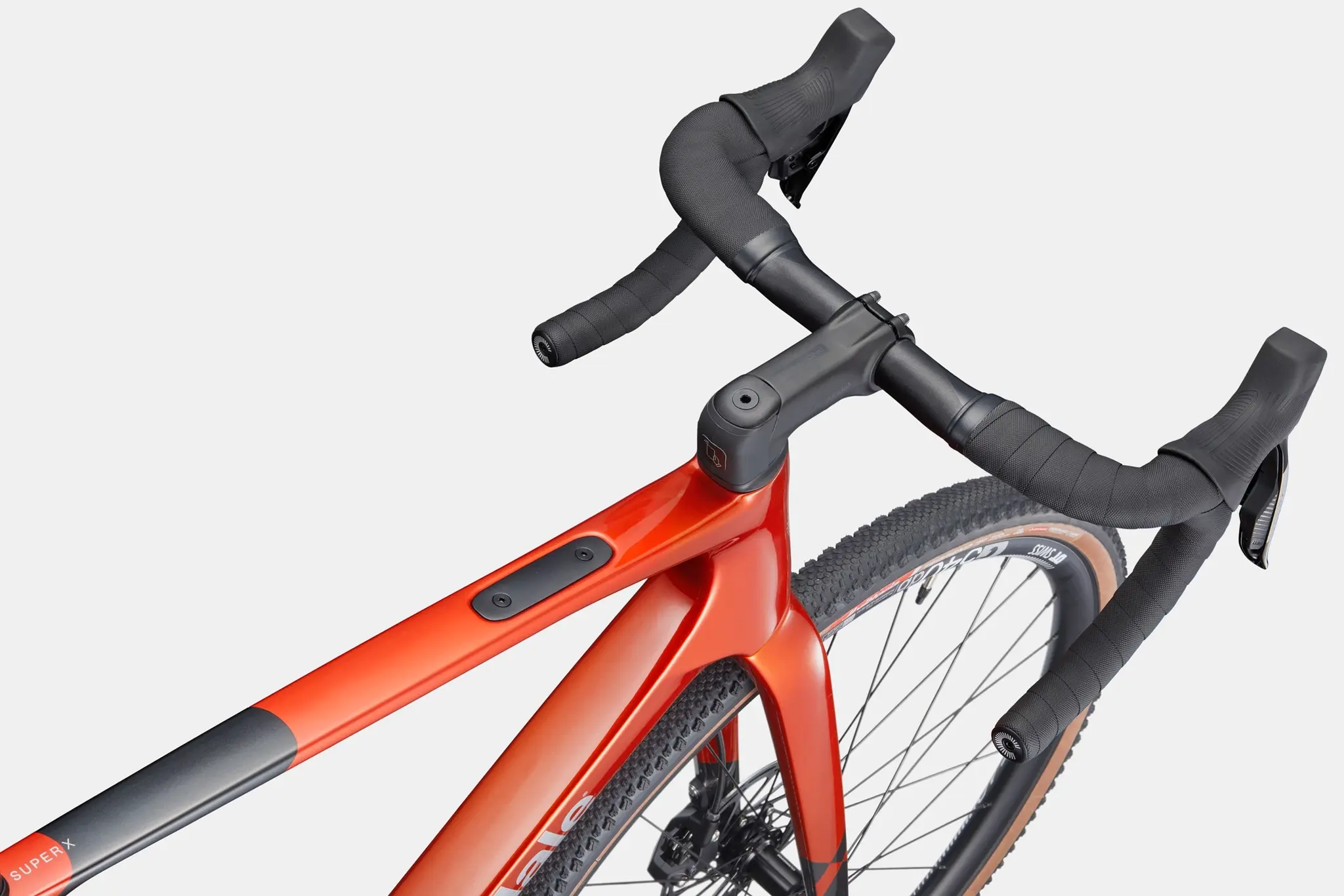

• Handlebar

  Vision Trimax Aero Alloy: 400mm (46-51cm), 420mm (54-61cm)
• Stem

  Cannondale C1 Conceal, Alloy, 31.8, -6°: 90mm (46-51m), 100mm (54-56cm), 110mm (58-61cm)
• Grips

  Cannondale Bar Tape, 3.5mm
• Saddle

  Fizik Vento Argo X5, S-Alloy rails, 140mm
• Seatpost

  Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 15mm offset (51-61cm)

Extra

• Extra 1

  Tubeless valves, SRAM AXS charger
