Frameset
-
Frame
CAAD14, SmartForm C1 Premium Alloy, integrated cable routing, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, UDH
-
Fork
CAAD14, full carbon, 1-1/8" to 1-1/2" Delta Steerer, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 55mm offset (44-54cm), 45mm offset (56-61cm)
-
Headset
Integrated, 1-1/8" - 1.5"
Drivetrain
-

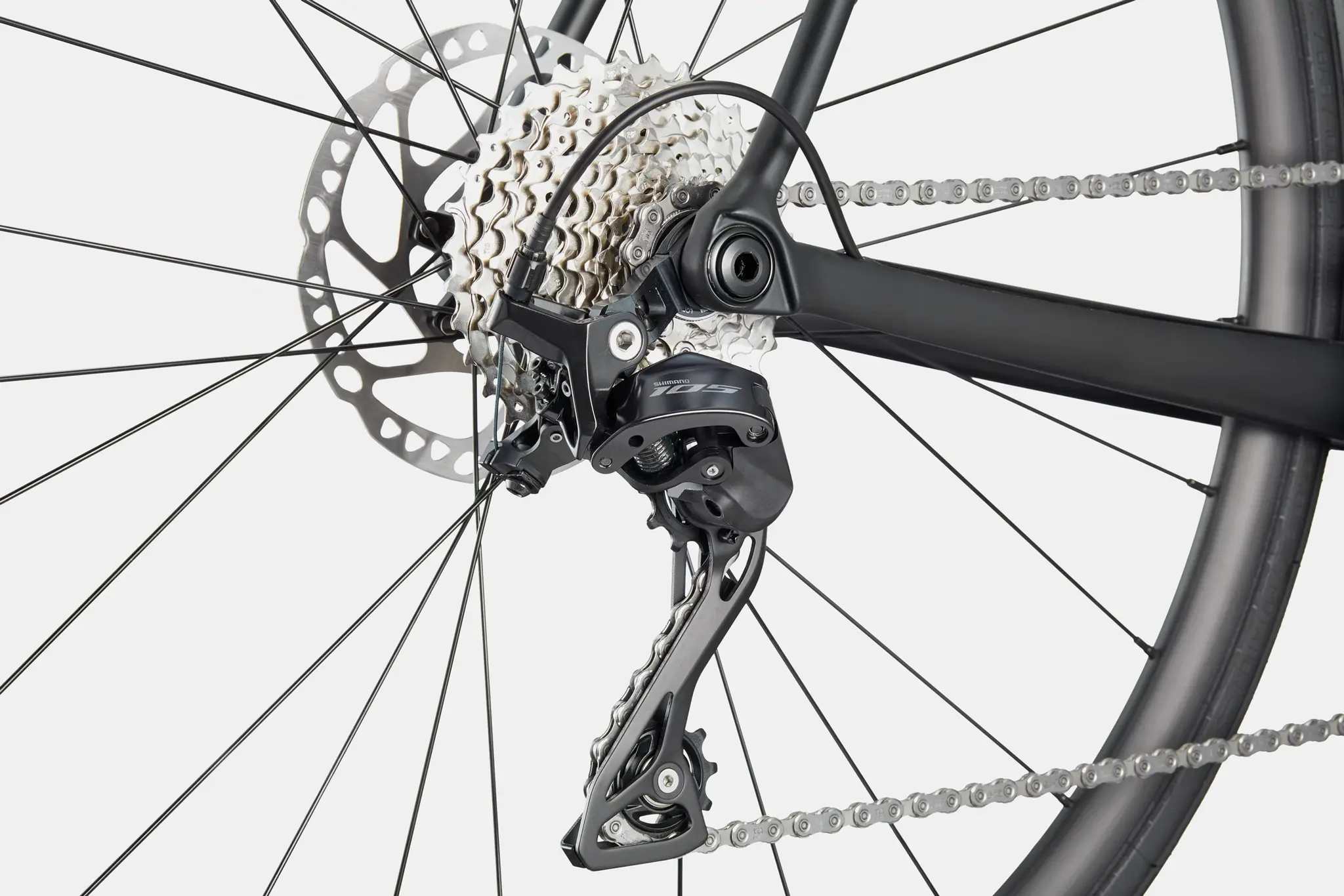

Rear Derailleur
Shimano 105 7100, 12-speed
-
Front Derailleur
Shimano 105 7100
-
Shifters
Shimano 105 R7100, 2x12-speed
-
Chain
Shimano 105 7100, 12-speed
-

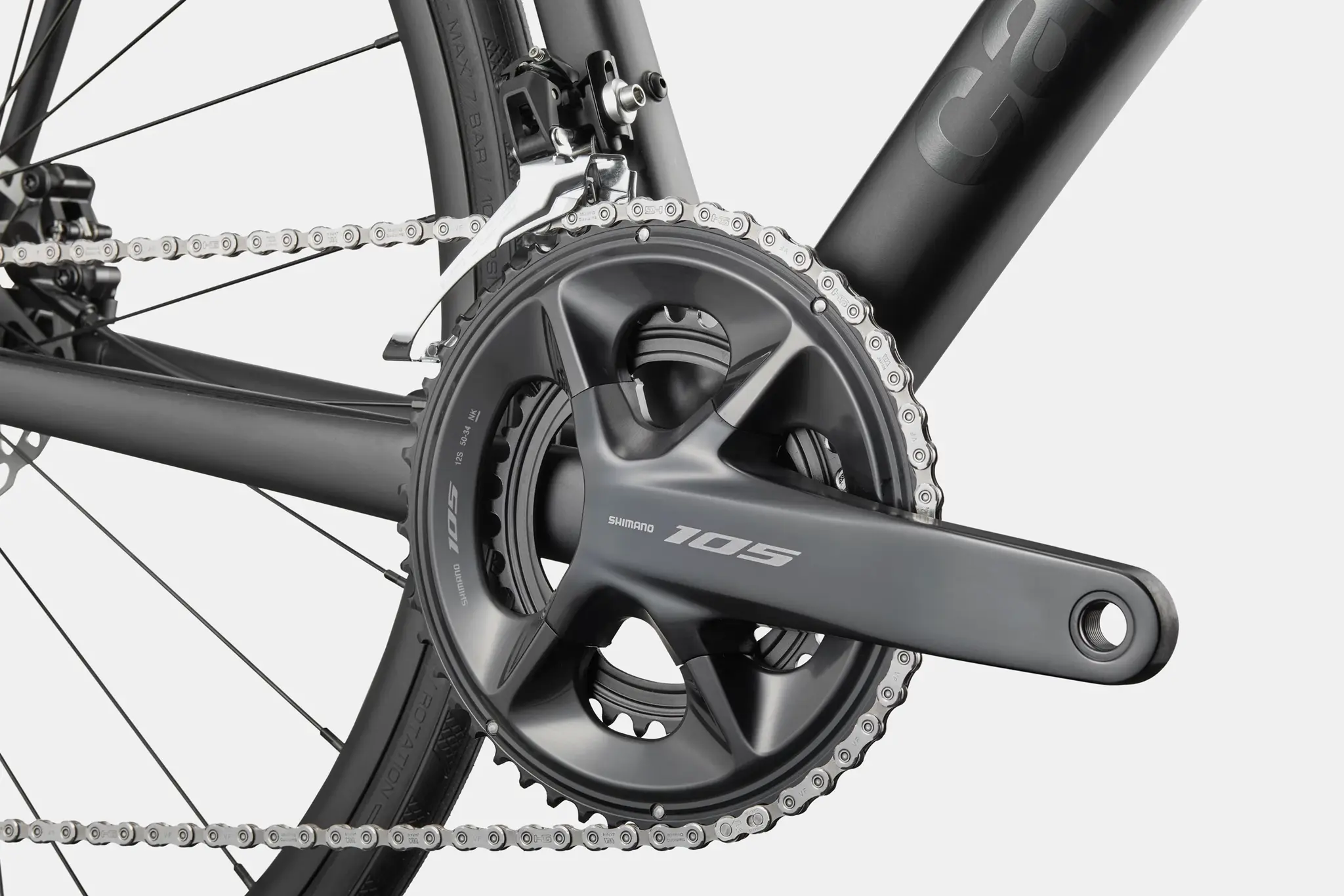

Crank
Shimano 105 R7100, 50/34: 165mm (48-51cm), 170mm (54-56cm) 172.5mm (58-61cm)
-
Rear Cogs
Shimano 105 R7100, 11-34, 12-speed
-
Bottom Bracket
Shimano BB-RS500, BSA 68
Brakes
-
Brakes
Shimano 105 R7170 hydraulic disc, 160/160mm RT70 rotors
-
Brake Levers
Shimano 105 R7100 hydraulic disc
Wheels
-
Rims
Cannondale RD 2.0 Disc, double wall w/ eyelet, 28h
-
Spokes
Stainless Steel, 14g
-
-
-
Hubs
Shimano TC500, centerlock, (F) 12x100mm, (R) 12x142mm
-
Tires
Vittoria Zaffiro, 700x28c
Components
-

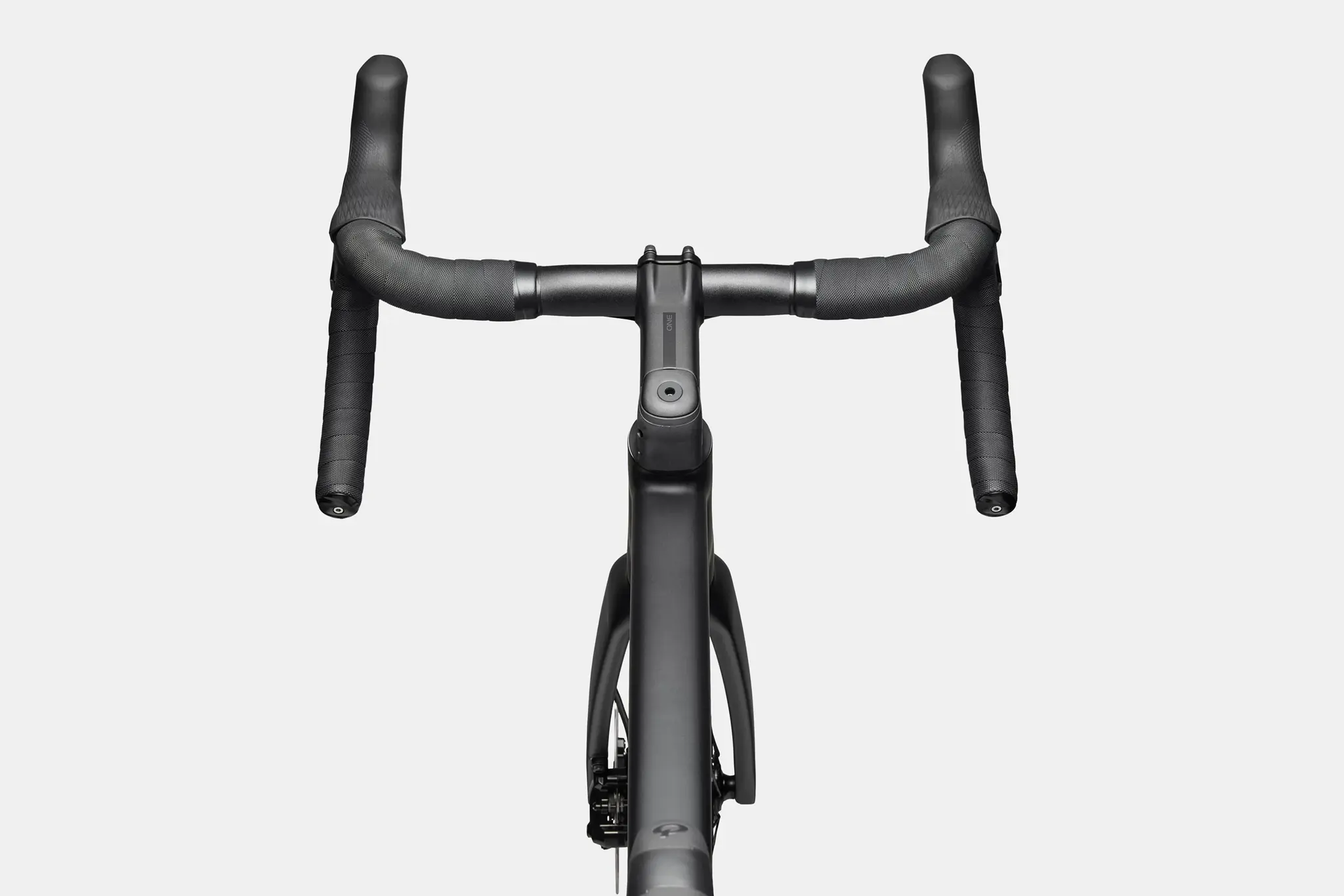

Handlebar
Vision Trimax Compact: 400mm (48-56cm), 420mm (58-61cm)
-
Stem
Cannondale C1 Conceal, Alloy, 31.8, -6°: 90mm (48-52cm), 100mm (54-56cm), 110mm (58-61cm)
-
Grips
Cannondale Bar Tape, 3.5mm
-
Saddle
Prologo Nago RS STN
-
Seatpost
Cannondale 3, 6061 Alloy, 27.2x350mm, 11mm offset
Extra
-
Extra 1
Conceal Stem accessory/computer mount (Garmin/Wahoo)
Please note that, based on component availability and other factors, specifications are subject to change without notice.
