Frameset

• Frame

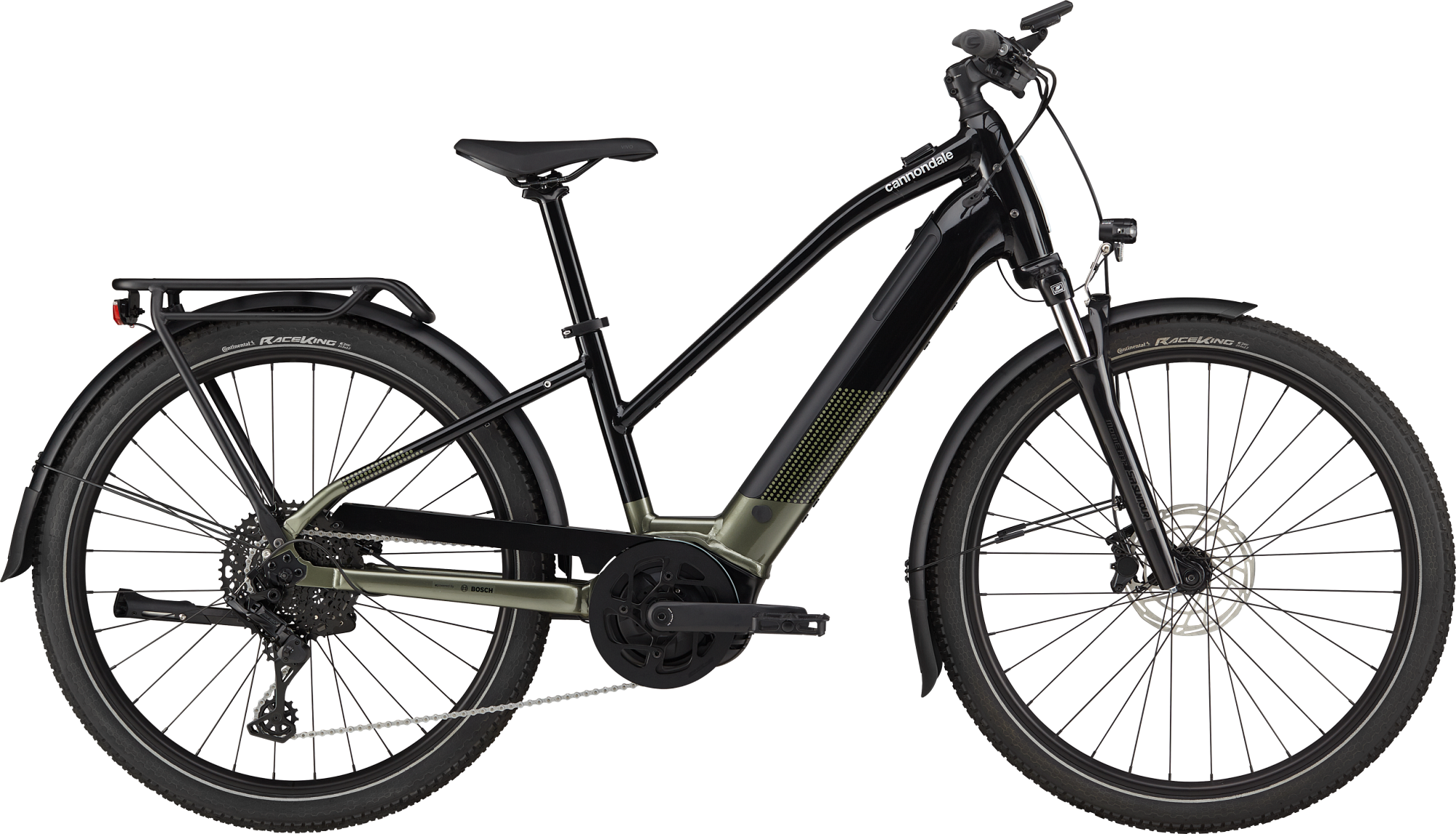

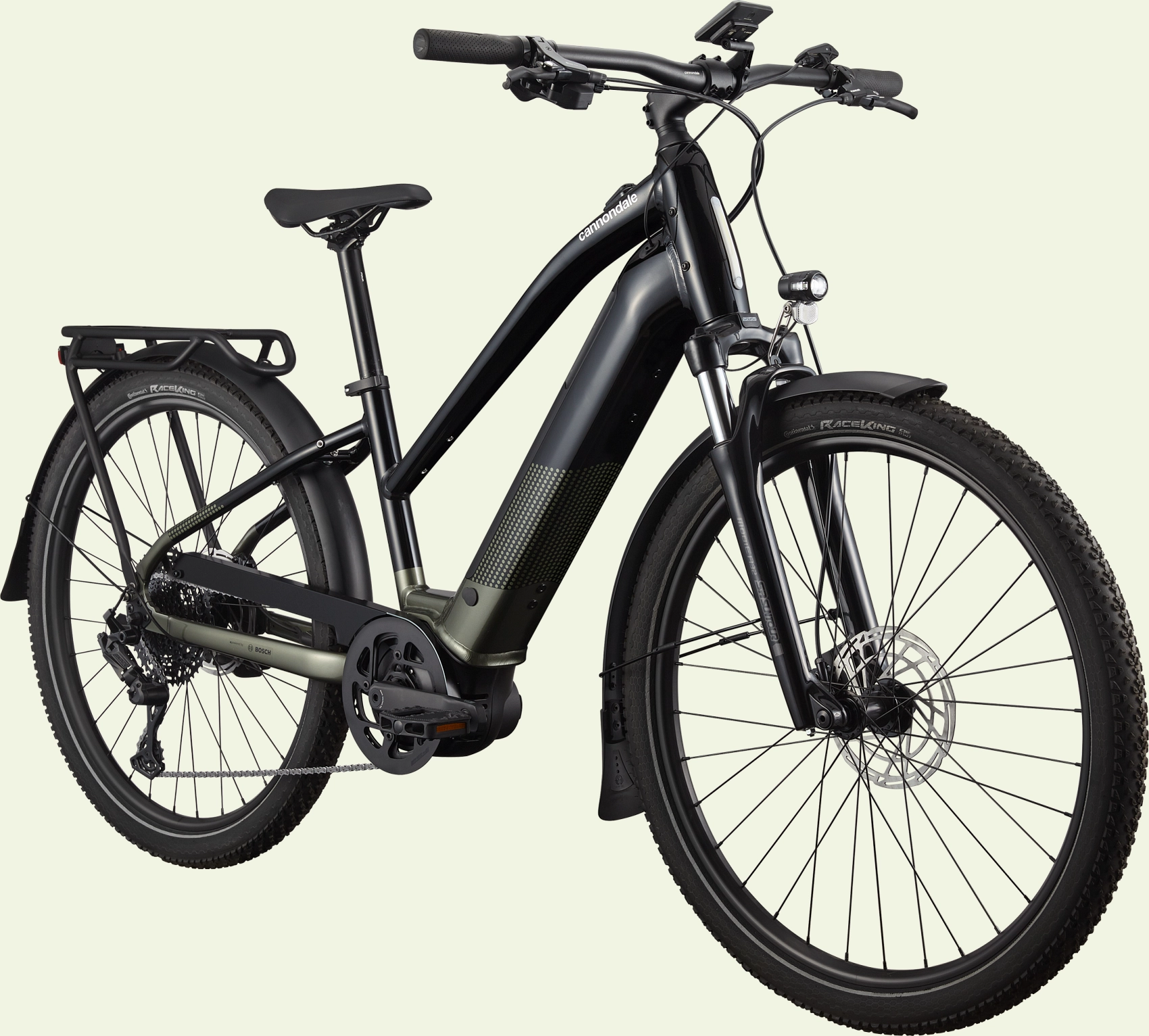

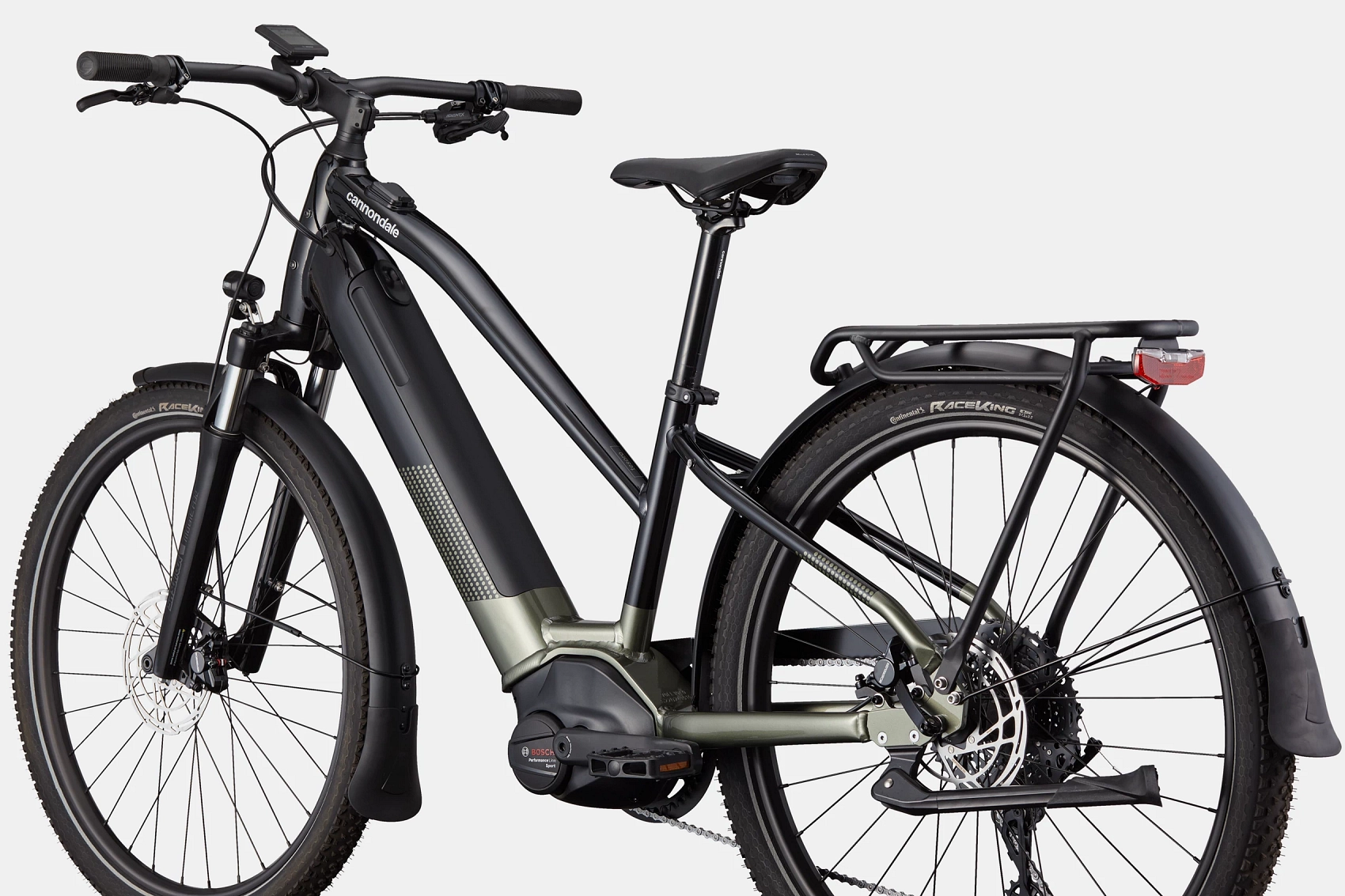

  SmartForm C2 Alloy, step-thru, removable 625Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection
• Fork

  SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset
• Headset

  Semi-Integrated, Tapered; 1-1/8"-1-1/2"

E-System

• Drive Unit

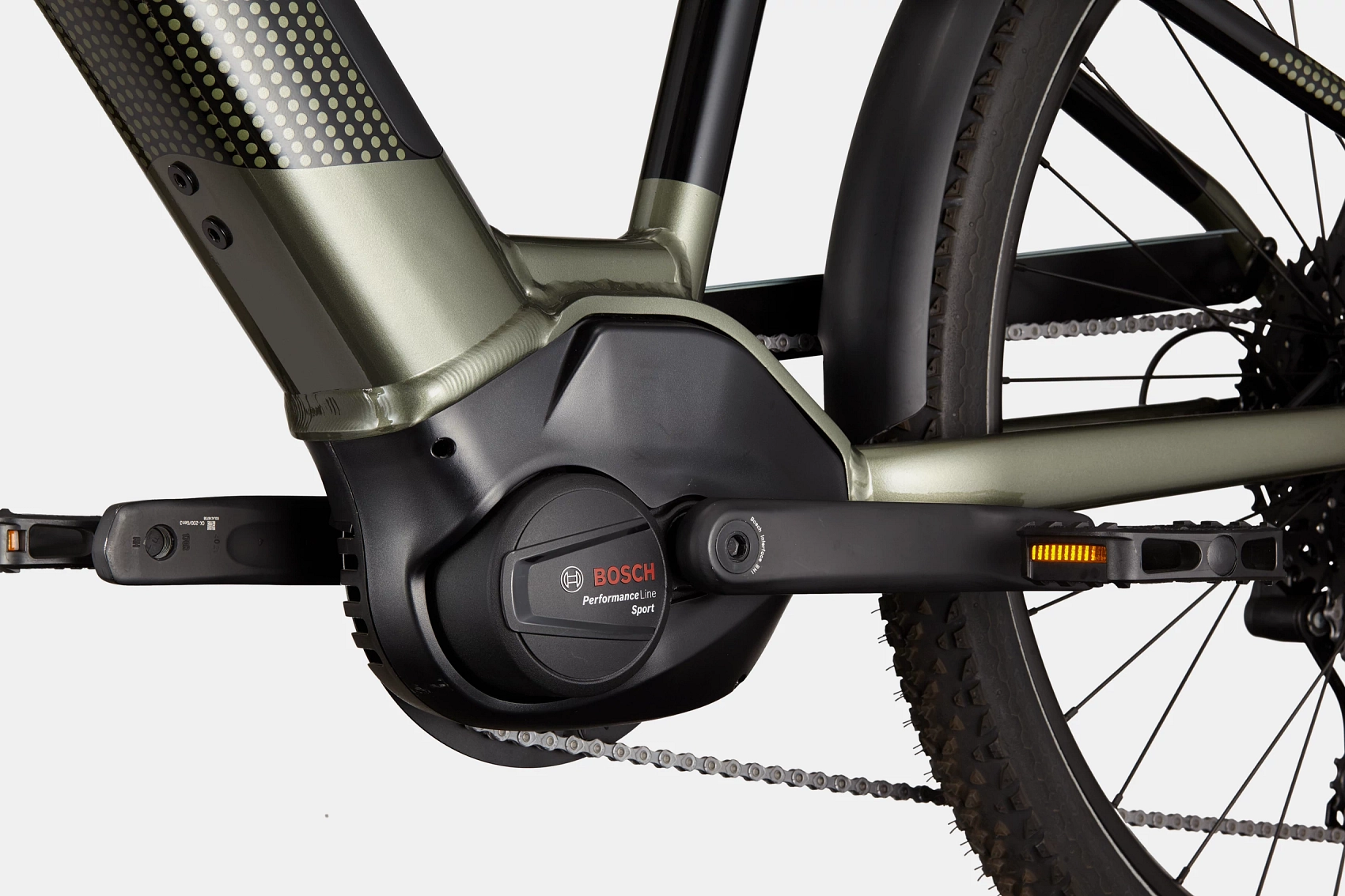

  Bosch Performance Line Sport (28 mph)
• Battery

  Bosch PowerTube, 625Wh
• Charger

  Bosch 4A
• Display

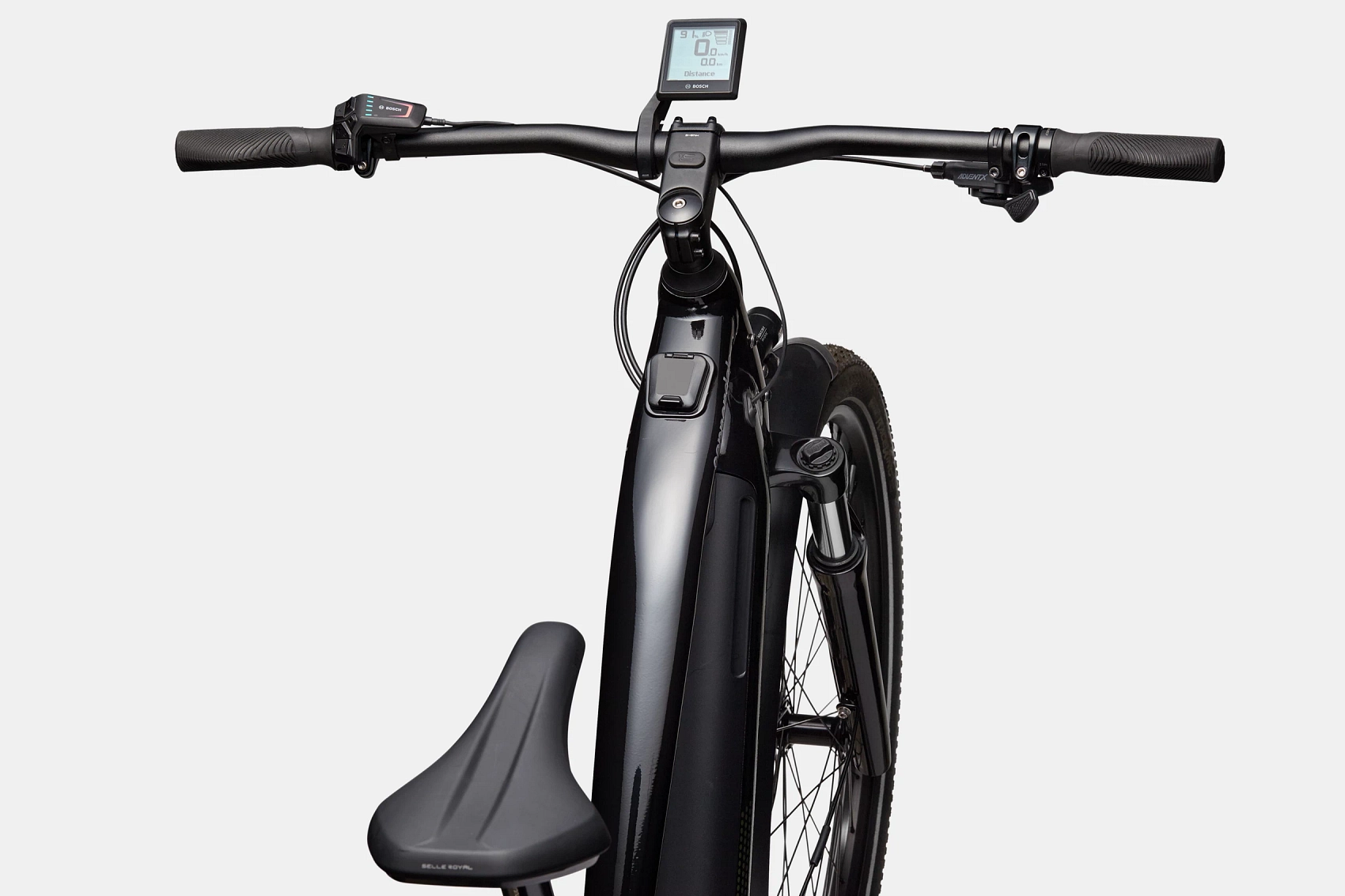

  Bosch Intuvia w/LED remote
• Certifications

  UL 2849

Drivetrain

• Rear Derailleur

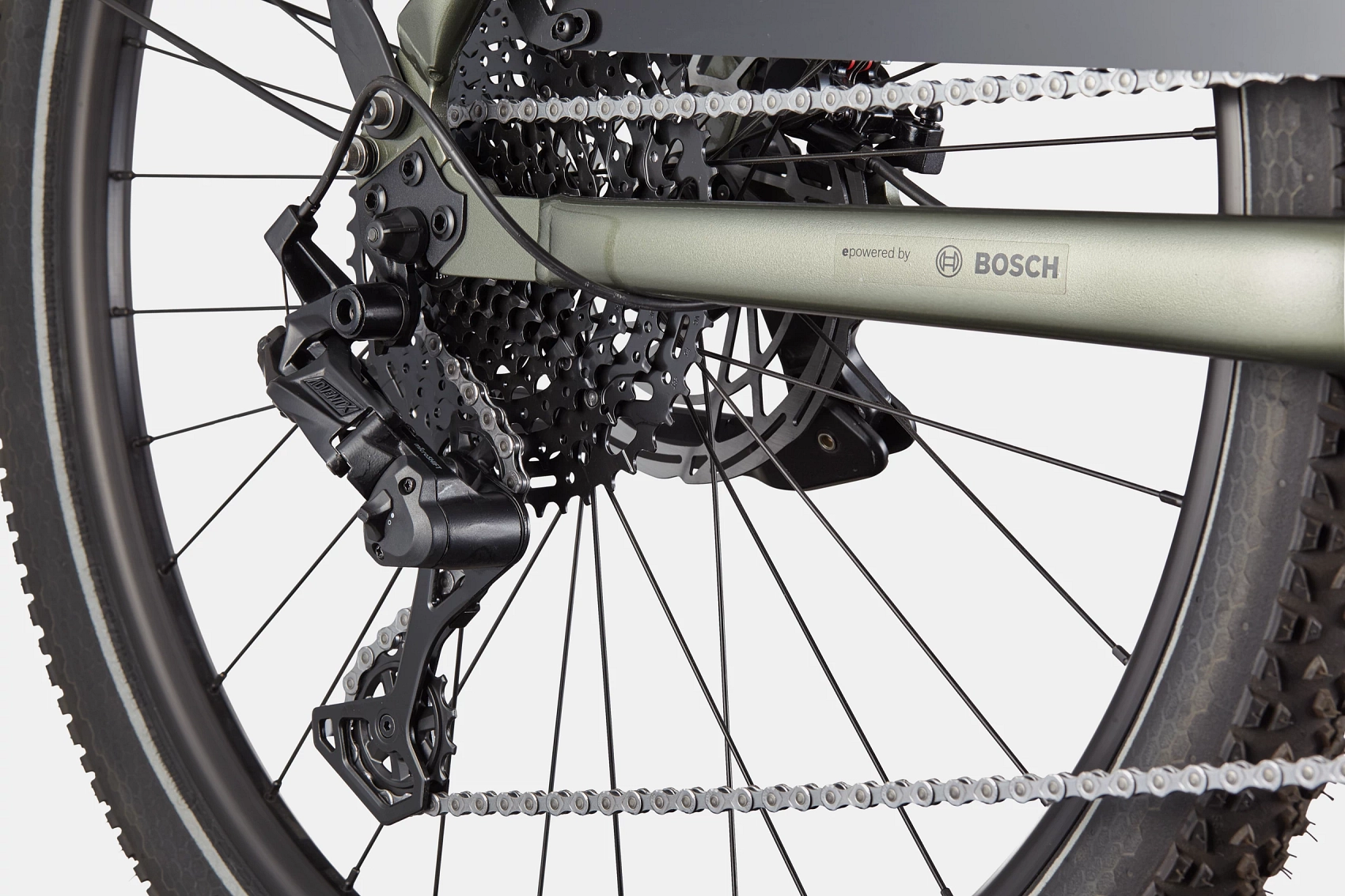

  microSHIFT Advent X, 10-speed
• Shifters

  microSHIFT Advent X Trail Trigger Pro, 10-speed
• Chain

  KMC E10S, EPT anti-rust, 10-speed
• Crank

  FSA for Bosch
• Rear Cogs

  microSHIFT EH104, 11-48, 10-speed

Brakes

• Brakes

  Riderever Attack-U-OE, 2-piston hydraulic disc, 180/180 rotors
• Brake Levers

  Riderever Attack-U-OE, hydraulic disc

Wheels

• Rims

  Alloy, double wall, 32 hole, 25mm internal width, disc-specific
• Spokes

  Stainless Steel, 14g
• Tire Size

  29x2.2
• Wheel Size

  27.5/29
• Hubs

  (F) Formula CL-71, 15x100mm centerlock / (R) Formula CL-26, 135QR centerlock
• Tires

  Continental Race King, 27.5x2.20" 55-584 (SM), 29x2.20" 55-622 (MD-LG)

Components

• Handlebar

  Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm
• Stem

  Cannondale 3 with Intellimount, Alloy, 31.8mm clamp
• Grips

  Cannondale Ergo Fitness Dual Density, Lock-on
• Saddle

  Fizik Essenza Moderate
• Seatpost

  Cannondale 3, 6061 Alloy, 31.6

Extra

• Extra 1

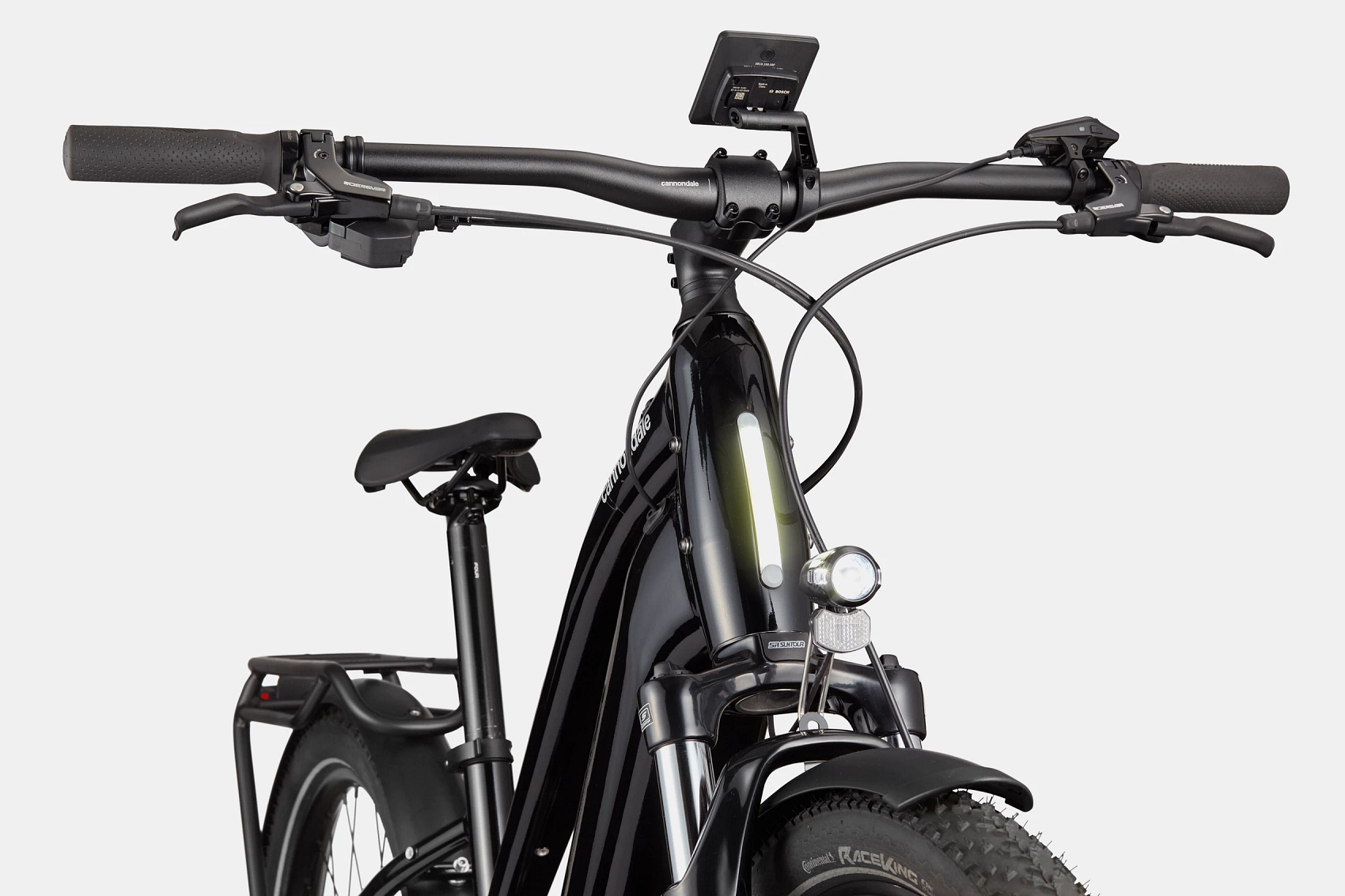

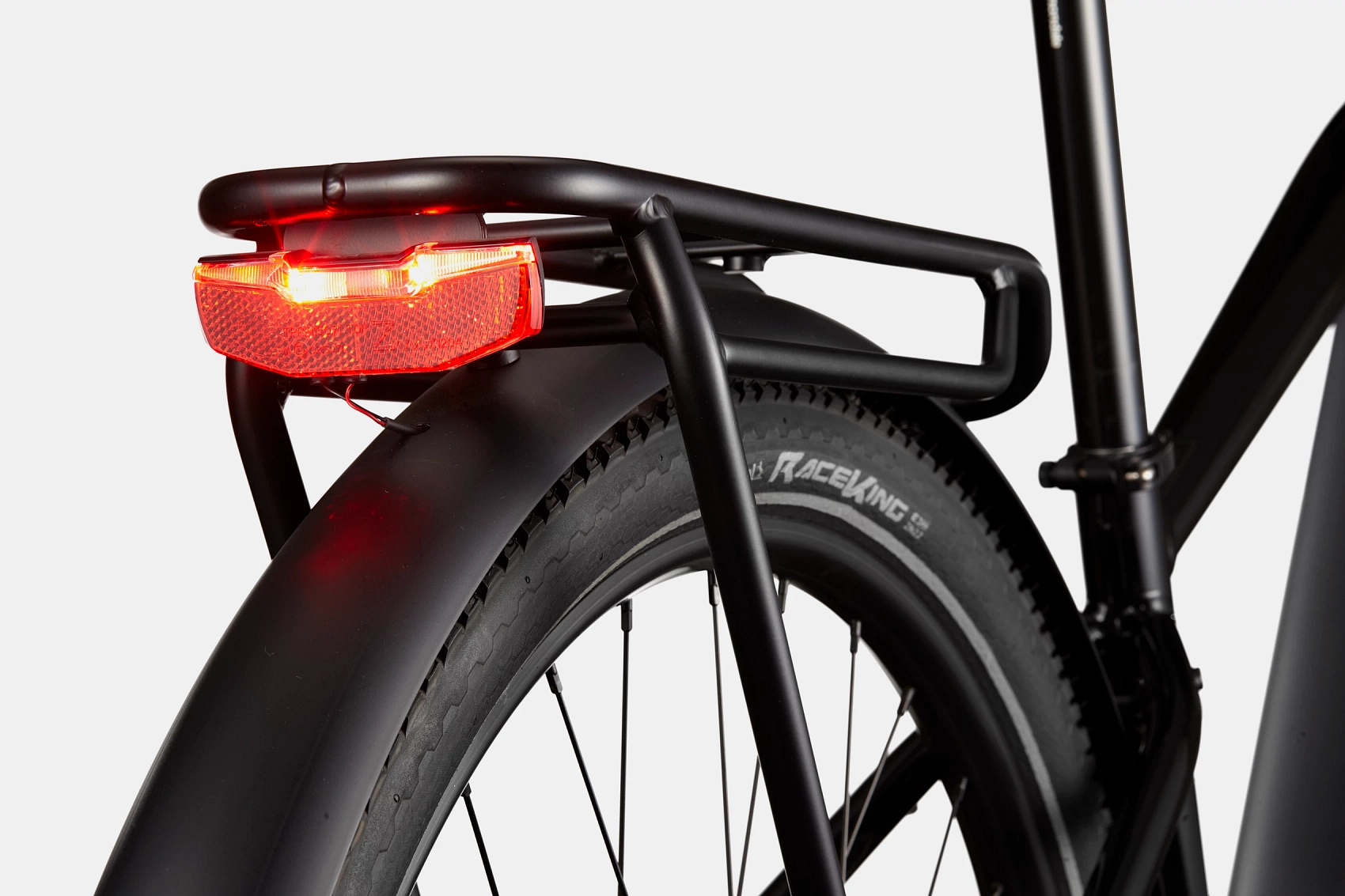

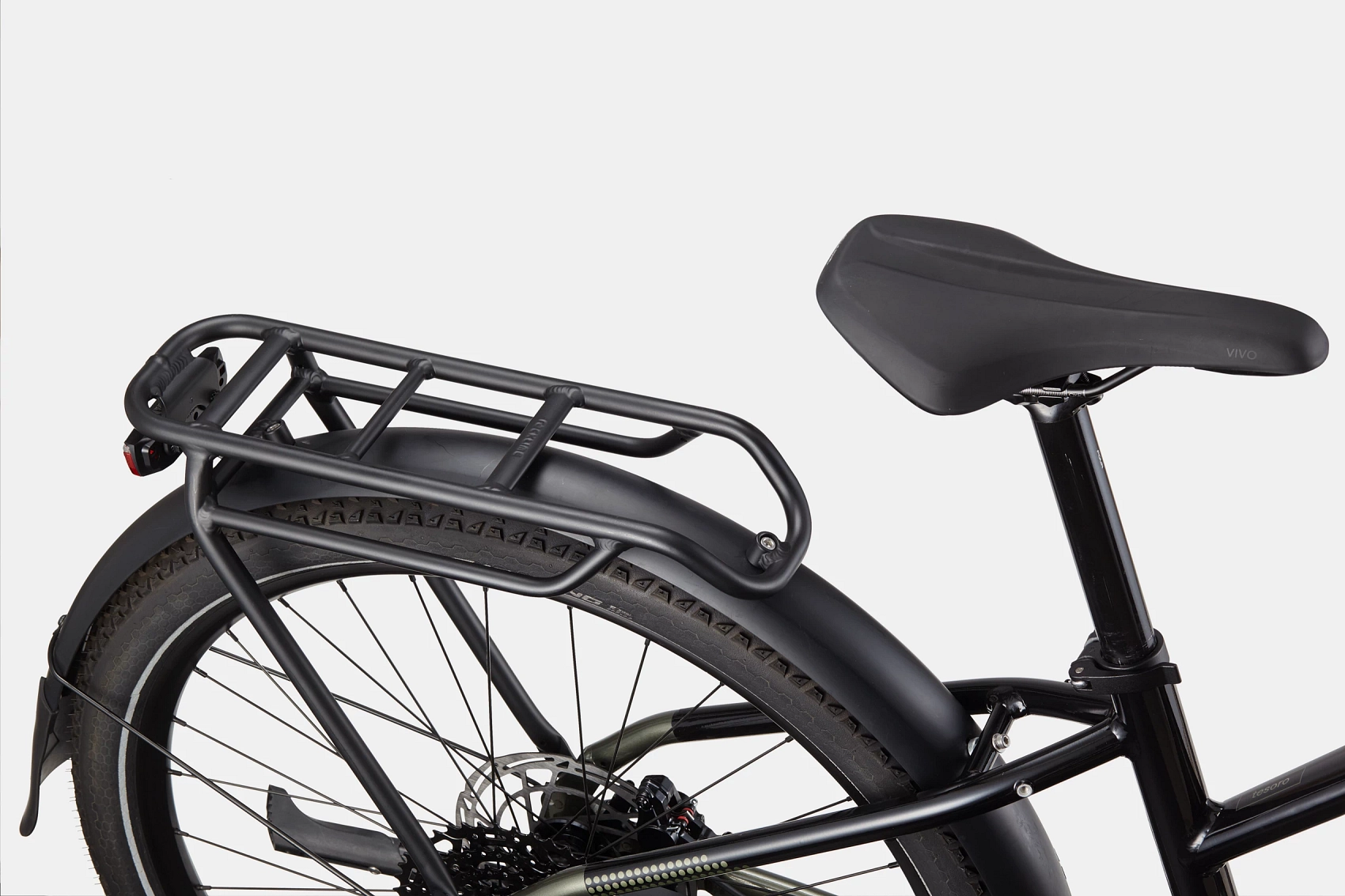

  Integrated headtube running light, Axa Compactline 35E front light, Axa Blueline rear light, Tubus rear rack (25kg, Racktime SnapIt 1.0 compatible), full-coverage fenders
