Details

• Platform

  Trail
• Model Name

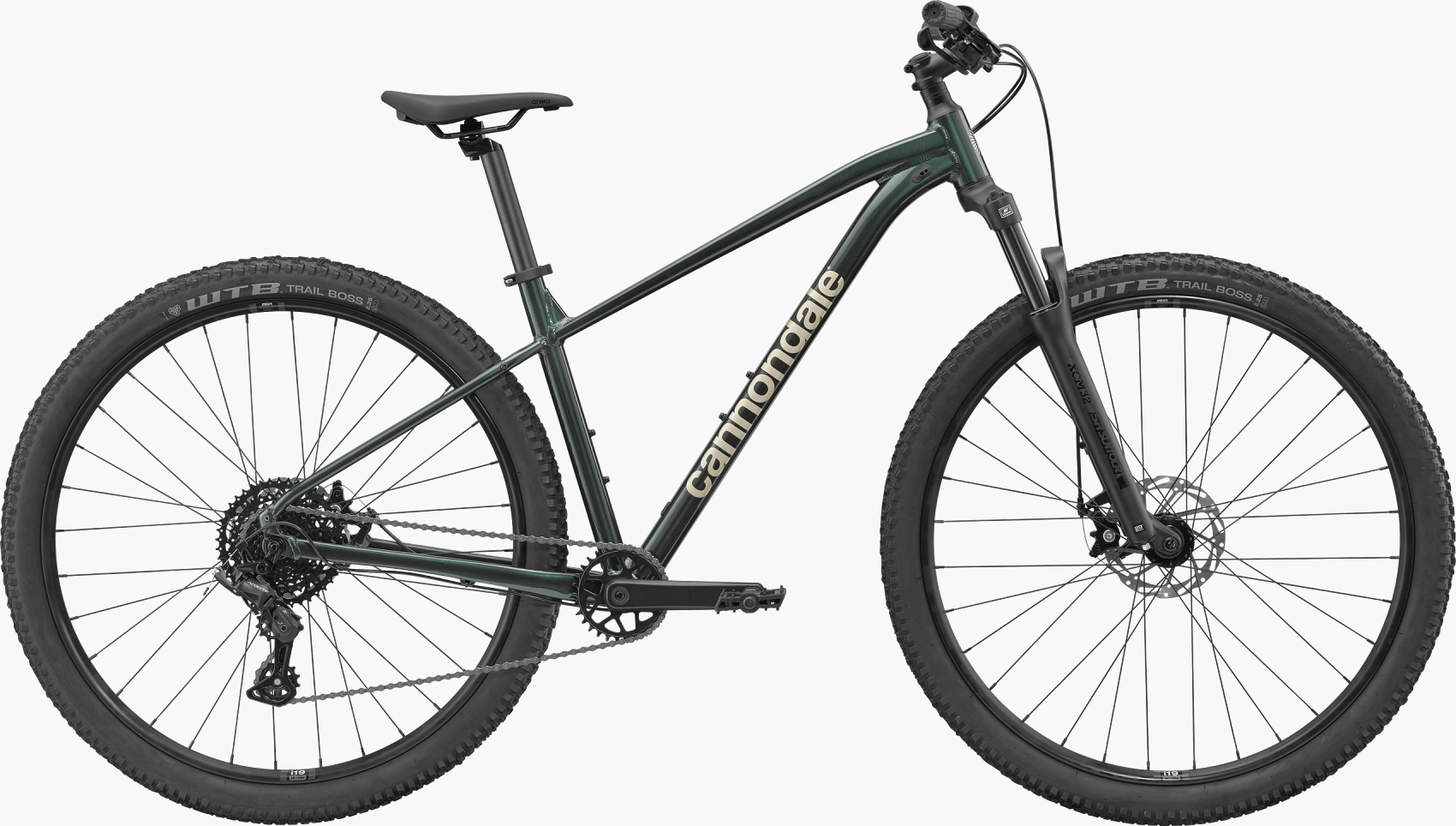

  Trail 3
• Model Code

  C2601GU

Frameset

• Frame

  Trail, SmartForm C3 Alloy, 142x12mm, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, KickFlip hidden 18mm 2-bolt kickstand mount, BSA-73, 27.5" wheels (XS, S) / 29" wheels (M, L, XL)
• Fork

  SR Suntour XCM , coil, 100mm travel, 46mm offset (29"), 80mm travel, 42mm offset (27.5")
• Headset

  Semi-Integrated, 1-1/8"

Drivetrain

• Rear Derailleur

  microSHIFT Acolyte, 8-speed
• Shifters

  microSHIFT Acolyte, trigger-style, 8-speed
• Chain

  KMC X8, 8-speed
• Crank

  Prowheel, Charm 30T
• Rear Cogs

  microSHIFT, 12-42, 8-speed
• Bottom Bracket

  ProWheel, square taper

Brakes

• Brakes

  Tektro M280 mechanical disc, 160/160mm rotors
• Brake Levers

  Tektro RS360A mechanical disc

Wheels

• Rims

  WTB SX19, 32h
• Spokes

  Stainless Steel, 14g
• Tire Size

  2.25
• Wheel Size

  27.5/29
• Hubs

  (F) Formula DC-51, 15x100mm / (R) Formula DC-1422, 12x142mm
• Tires

  WTB Ranger, 27.5x2.25" (XS, S) / 29x2.25" (M, L, XL)

Components

• Handlebar

  6061 Alloy Riser, 31.8mm, 25mm rise, 700mm
• Stem

  6061 Alloy, 31.8, 8°
• Grips

  Cannondale Push On
• Saddle

  Cannondale Trail
• Seatpost

  6061 Alloy, 31.6x400mm
