Details

• Platform

  Adventure Neo Allroad
• Model Name

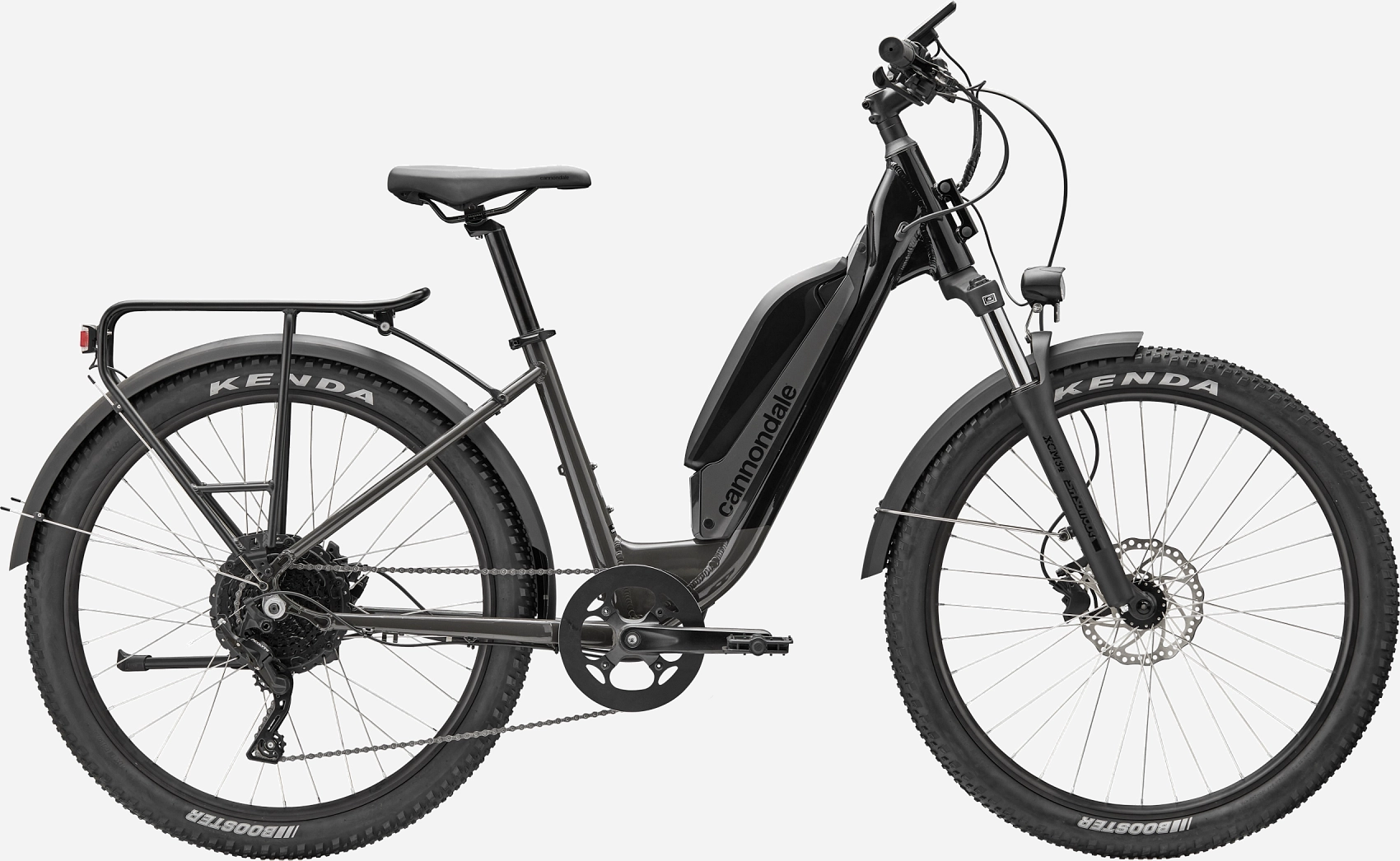

  Adventure Neo Allroad Speed Low StepThru
• Model Code

  C68303U

Frameset

• Frame

  SmartForm C3 Alloy frame, low step-thru, removable downtube battery, semi-internal cable routing, tapered 1-1/8"-1.5" headtube, post mount disc, waterbottle and headtube rack mounts
• Fork

  SR Suntour XCM34, 100mm travel, preload adjust, coil, 51mm offset, tapered steerer
• Headset

  Semi Integrated, 1-1/8" - 1.5"

E-System

• Drive Unit

  Bafang G0900 hub motor, 750W (28mph)
• Battery

  HWT 48V, 720Wh, Taiwan-made
• Charger

  HWT 2A
• Display

  Bafang C10, LCD w/USB port

Drivetrain

• Rear Derailleur

  microSHIFT Acolyte, 8-speed
• Shifters

  microSHIFT Acolyte Xpress trigger shifter, 8-speed
• Chain

  KMC Z8, 8-speed
• Crank

  Prowheel, 46T
• Rear Cogs

  microSHIFT, 12-42, 8-speed
• Bottom Bracket

  Bafang SR PA231.32.ST.C Torque Sensor

Brakes

• Brakes

  Tektro HD-E395 hydraulic disc w/motor cut-off and brake light function, 180mm rotors
• Brake Levers

  Tektro hydraulic, alloy

Wheels

• Rims

  Alloy, double wall, 36h, disc-specific
• Spokes

  Stainless Steel (F) 13g / (R) 12g
• Tire Size

  2.6
• Wheel Size

  27.5
• Hubs

  (F) Sealed alloy disc, 36 hole, 110mm x 15mm thru-axle / (R) Bafang G0900 hub motor, 750W
• Tires

  Kenda Booster, 27.5x2.6"

Components

• Handlebar

  Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 740mm
• Stem

  Cannondale Alloy, 31.8, 7°
• Grips

  Cannondale Comfort
• Saddle

  Cannondale Allroad Comfort
• Seatpost

  6061 Alloy, 30.9x350mm

Extra

• Extra 1

  USB charger, headlight, taillight w/ brake light function, kickstand, rear rack (25kg), composite fenders w/ stainless steel struts
